Industry Canada File Number: 3717
CRTC Decision Number: 120361
Channel: 14
Station Class: R
Status: Operational
NAD83 Coordinates: 45 30' 11.16" N 75 51' 1.08" W
REC measured distance to USA: 83.0 km - 147.6
Site Elevation: 350.5 m
Effective HAAT: 390.5 m
Site Elevation: 350.5 m
Overall Antenna Height Above Ground: 219.2 m
Radiation Center Above Mean Sea Level: 529.1 m
Effective Radiated Power (ERP): 49.2 kW average / 145 kW peak

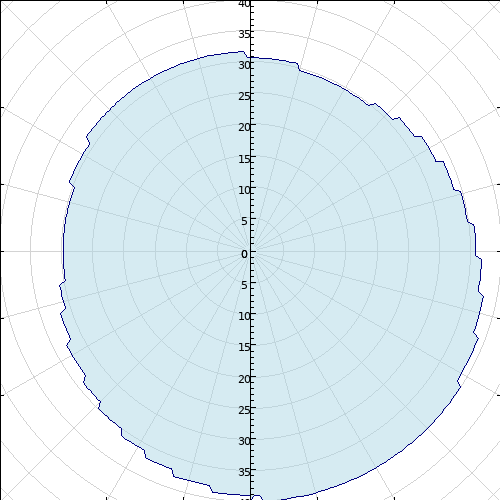

Antenna Type: Directional
Antenna System ID: 2079
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -9.00 | 6.2 |
90 | -4.10 | 19.1 |
180 | -1.10 | 38.2 |
270 | -10.60 | 4.3 |
| 5 | -9.34 | 5.7 |
95 | -3.50 | 22.0 |
185 | -1.50 | 34.8 |
275 | -10.63 | 4.3 |
| 10 | -9.70 | 5.3 |
100 | -3.02 | 24.5 |
190 | -2.00 | 31.0 |
280 | -10.52 | 4.4 |
| 15 | -10.00 | 4.9 |
105 | -2.50 | 27.7 |
195 | -2.48 | 27.8 |
285 | -10.20 | 4.7 |
| 20 | -10.34 | 4.5 |
110 | -2.00 | 31.0 |
200 | -3.02 | 24.5 |
290 | -9.95 | 5.0 |
| 25 | -10.50 | 4.4 |
115 | -1.54 | 34.6 |
205 | -3.60 | 21.5 |
295 | -9.58 | 5.4 |
| 30 | -10.60 | 4.3 |
120 | -1.12 | 38.0 |
210 | -4.22 | 18.6 |
300 | -9.20 | 5.9 |
| 35 | -10.34 | 4.5 |
125 | -0.80 | 40.9 |
215 | -4.85 | 16.1 |
305 | -8.87 | 6.4 |
| 40 | -9.90 | 5.0 |
130 | -0.50 | 43.8 |
220 | -5.50 | 13.9 |
310 | -8.59 | 6.8 |
| 45 | -9.30 | 5.8 |
135 | -0.26 | 46.4 |
225 | -6.11 | 12.1 |
315 | -8.40 | 7.1 |
| 50 | -8.71 | 6.6 |
140 | -0.10 | 48.1 |
230 | -6.69 | 10.5 |
320 | -8.20 | 7.4 |
| 55 | -8.09 | 7.6 |
145 | -0.03 | 48.8 |
235 | -7.20 | 9.4 |
325 | -8.13 | 7.6 |
| 60 | -7.50 | 8.7 |
150 | 0.00 | 49.2 |
240 | -7.60 | 8.5 |
330 | -8.10 | 7.6 |
| 65 | -6.90 | 10.1 |
155 | -0.10 | 48.1 |
245 | -8.07 | 7.7 |
335 | -8.20 | 7.4 |
| 70 | -6.30 | 11.5 |
160 | -0.10 | 48.1 |
250 | -8.60 | 6.8 |
340 | -8.20 | 7.4 |
| 75 | -5.70 | 13.2 |
165 | -0.26 | 46.3 |
255 | -9.20 | 5.9 |
345 | -8.40 | 7.1 |
| 80 | -5.20 | 14.9 |
170 | -0.50 | 43.8 |
260 | -9.90 | 5.0 |
350 | -8.50 | 6.9 |
| 85 | -4.64 | 16.9 |
175 | -0.80 | 40.9 |
265 | -10.20 | 4.7 |
355 | -8.75 | 6.6 |
|
|
| Broadcasting Certificate effective date | 02/04/2015 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2017 | | International coordination request sent | 05/22/2012 | | International coordination reply received | 06/08/2012 | | Application received | 03/29/2012 | | Letter of Authorization issued | 07/05/2012 | | On-air date | 02/04/2015 | | CRTC letter date | 04/23/2012 | | CRTC hearing date | 07/04/2012 |
|
