Industry Canada File Number: 3719
CRTC Decision Number: 119999
Channel: 7
Station Class: R
Status: Operational
NAD83 Coordinates: 44 58' 14.16" N 79 46' 57.00" W
REC measured distance to USA: 169.5 km - 151.8
Site Elevation: 200 m
Allocation Planning Zone: 1
Effective HAAT: 346.7 m
Site Elevation: 200 m
Overall Antenna Height Above Ground: 358 m
Radiation Center Above Mean Sea Level: 550 m
Effective Radiated Power (ERP): 3.63 kW average / 6.75 kW peak

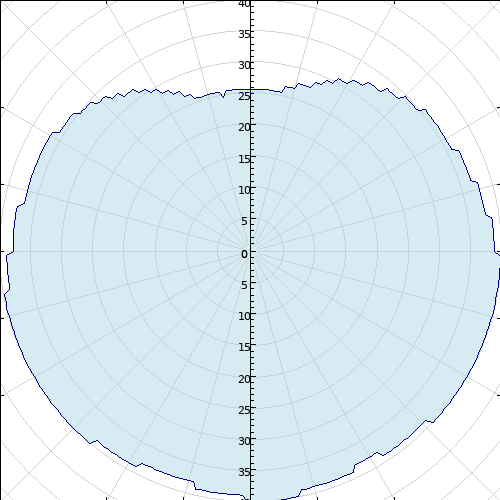

Antenna Type: Directional
Antenna System ID: 2666
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -15.20 | 0.110 |
90 | -1.00 | 2.883 |
180 | -1.60 | 2.511 |
270 | -2.00 | 2.290 |
| 5 | -15.10 | 0.112 |
95 | -0.90 | 2.951 |
185 | -1.30 | 2.691 |
275 | -3.30 | 1.698 |
| 10 | -14.30 | 0.135 |
100 | -0.40 | 3.311 |
190 | -1.70 | 2.454 |
280 | -2.90 | 1.862 |
| 15 | -15.50 | 0.102 |
105 | -0.20 | 3.467 |
195 | -4.40 | 1.318 |
285 | -3.10 | 1.778 |
| 20 | -16.40 | 0.083 |
110 | -0.10 | 3.547 |
200 | -2.30 | 2.138 |
290 | -4.60 | 1.259 |
| 25 | -10.50 | 0.324 |
115 | 0.00 | 3.630 |
205 | -2.10 | 2.238 |
295 | -3.50 | 1.621 |
| 30 | -9.10 | 0.447 |
120 | -0.10 | 3.547 |
210 | -2.80 | 1.905 |
300 | -3.80 | 1.513 |
| 35 | -12.50 | 0.204 |
125 | -0.40 | 3.311 |
215 | -1.40 | 2.630 |
305 | -6.20 | 0.871 |
| 40 | -6.80 | 0.758 |
130 | -0.30 | 3.388 |
220 | -0.90 | 2.951 |
310 | -7.50 | 0.646 |
| 45 | -5.80 | 0.955 |
135 | -1.10 | 2.818 |
225 | -0.60 | 3.162 |
315 | -6.40 | 0.832 |
| 50 | -8.30 | 0.537 |
140 | -1.40 | 2.630 |
230 | -0.40 | 3.311 |
320 | -13.00 | 0.182 |
| 55 | -4.60 | 1.259 |
145 | -2.00 | 2.290 |
235 | -0.20 | 3.467 |
325 | -17.00 | 0.072 |
| 60 | -4.30 | 1.349 |
150 | -3.00 | 1.819 |
240 | -0.20 | 3.467 |
330 | -10.90 | 0.295 |
| 65 | -7.40 | 0.661 |
155 | -1.90 | 2.344 |
245 | -0.20 | 3.467 |
335 | -15.30 | 0.107 |
| 70 | -6.70 | 0.776 |
160 | -3.30 | 1.698 |
250 | -0.20 | 3.467 |
340 | -14.70 | 0.123 |
| 75 | -2.70 | 1.949 |
165 | -2.40 | 2.089 |
255 | -0.60 | 3.162 |
345 | -14.60 | 0.126 |
| 80 | -4.20 | 1.380 |
170 | -0.90 | 2.951 |
260 | -1.00 | 2.883 |
350 | -15.00 | 0.115 |
| 85 | -2.80 | 1.905 |
175 | -1.40 | 2.630 |
265 | -1.50 | 2.570 |
355 | -15.40 | 0.105 |
|
|
| Broadcasting Certificate effective date | 09/01/2014 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2017 | | Application received | 03/22/2011 | | Letter of Authorization issued | 06/08/2011 | | On-air date | 04/23/2012 | | CRTC letter date | 04/26/2011 | | CRTC hearing date | 04/12/2011 |
|
