Industry Canada File Number: 6224
CRTC Decision Number: 110141
Channel: 51
Station Class: R
Status: Operational
NAD83 Coordinates: 42 50' 26.88" N 81 51' 29.16" W
REC measured distance to USA: 49.6 km - 288.8
Site Elevation: 217 m
Allocation Planning Zone: 1
Effective HAAT: 296.5 m
Site Elevation: 217 m
Overall Antenna Height Above Ground: 306.5 m
Radiation Center Above Mean Sea Level: 515.2 m
Effective Radiated Power (ERP): 115 kW average / 190 kW peak

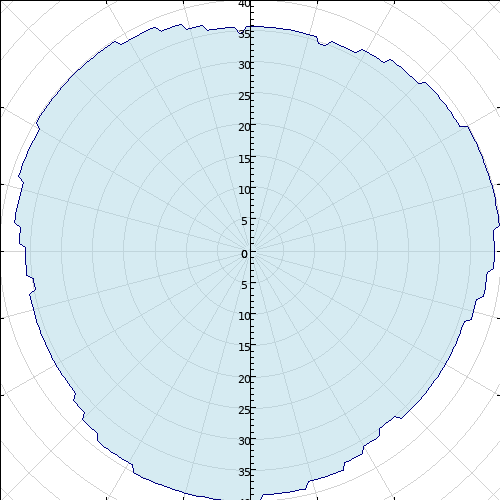

Antenna Type: Directional
Antenna System ID: 2665
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -3.17 | 55.4 |
90 | -1.40 | 83.3 |
180 | -0.80 | 95.7 |
270 | -3.05 | 57.0 |
| 5 | -4.40 | 41.8 |
95 | -1.30 | 85.3 |
185 | -0.40 | 104.9 |
275 | -2.79 | 60.4 |
| 10 | -4.30 | 42.7 |
100 | -2.70 | 61.8 |
190 | -0.03 | 114.3 |
280 | -2.30 | 67.7 |
| 15 | -3.26 | 54.3 |
105 | -3.50 | 51.4 |
195 | -0.01 | 114.8 |
285 | -1.93 | 73.8 |
| 20 | -5.10 | 35.5 |
110 | -2.72 | 61.5 |
200 | -0.40 | 104.9 |
290 | -1.40 | 83.3 |
| 25 | -4.40 | 41.8 |
115 | -3.01 | 57.5 |
205 | -0.43 | 104.2 |
295 | -1.40 | 83.3 |
| 30 | -3.05 | 57.0 |
120 | -4.40 | 41.8 |
210 | -0.82 | 95.2 |
300 | -0.49 | 102.7 |
| 35 | -2.79 | 60.4 |
125 | -3.24 | 54.6 |
215 | -1.50 | 81.4 |
305 | -0.19 | 110.0 |
| 40 | -2.30 | 67.7 |
130 | -3.26 | 54.3 |
220 | -1.82 | 75.6 |
310 | -0.10 | 112.4 |
| 45 | -1.93 | 73.8 |
135 | -4.60 | 39.9 |
225 | -2.32 | 67.5 |
315 | -0.10 | 112.4 |
| 50 | -1.40 | 83.3 |
140 | -3.25 | 54.4 |
230 | -3.90 | 46.8 |
320 | -0.15 | 111.1 |
| 55 | -1.30 | 85.3 |
145 | -3.19 | 55.2 |
235 | -4.60 | 39.9 |
325 | -0.70 | 97.9 |
| 60 | -0.49 | 102.7 |
150 | -4.10 | 44.7 |
240 | -3.17 | 55.4 |
330 | -1.10 | 89.3 |
| 65 | -0.19 | 110.0 |
155 | -3.20 | 55.0 |
245 | -4.50 | 40.8 |
335 | -1.30 | 85.3 |
| 70 | -0.40 | 104.9 |
160 | -2.40 | 66.2 |
250 | -4.20 | 43.7 |
340 | -2.30 | 67.7 |
| 75 | -0.40 | 104.9 |
165 | -2.10 | 70.9 |
255 | -3.26 | 54.3 |
345 | -3.20 | 55.0 |
| 80 | -0.15 | 111.1 |
170 | -1.70 | 77.7 |
260 | -5.00 | 36.4 |
350 | -2.72 | 61.5 |
| 85 | -1.00 | 91.3 |
175 | -0.91 | 93.4 |
265 | -4.80 | 38.1 |
355 | -3.01 | 57.5 |
|
|
| Broadcasting Certificate effective date | 07/08/2015 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2017 | | Application received | 12/14/2010 | | Letter of Authorization issued | 04/14/2011 | | On-air date | 07/08/2015 | | CRTC letter date | 12/29/2010 | | CRTC hearing date | 03/02/2011 |
|
